POWER amplifiers used in Ares are two completely independent solid state monoblocks. Using proprietary sliding bias technology to avoid output transistor switching, they retain all the qualities of Class A amplification, while keeping the generated heat under control. Those power amps carry a number of innovations we feel are defining for the attributed sonic character.
The amplifier signal path is a differential gain stage followed by an error correcting buffer isolating it from the sliding bias output stage. With zero global feedback the amp still has vanishingly low distortion and unprecedented load stability. To round it off you have a regulated power supply for the input and drivers taking it beyond most high end offerings.
The preamplifier feeding the power amplifiers is our newly developed input board handling the input selection and volume control duties. The signal path is fully differential with transformer isolation for the unbalanced inputs. Ground switching prevents any interaction between components connected via RCA's as it is intended for use in the average household with no dedicated power lines . The preamplifier board now hosts our OPA211 based MM/MC phono stage with menu selectable MM/MC and cartridge loading making the Ares a top analog performer. The input board has its dedicated analog and digital power supplies totally independent of the power amplifiers', making it a complete preamplifier in the same box.

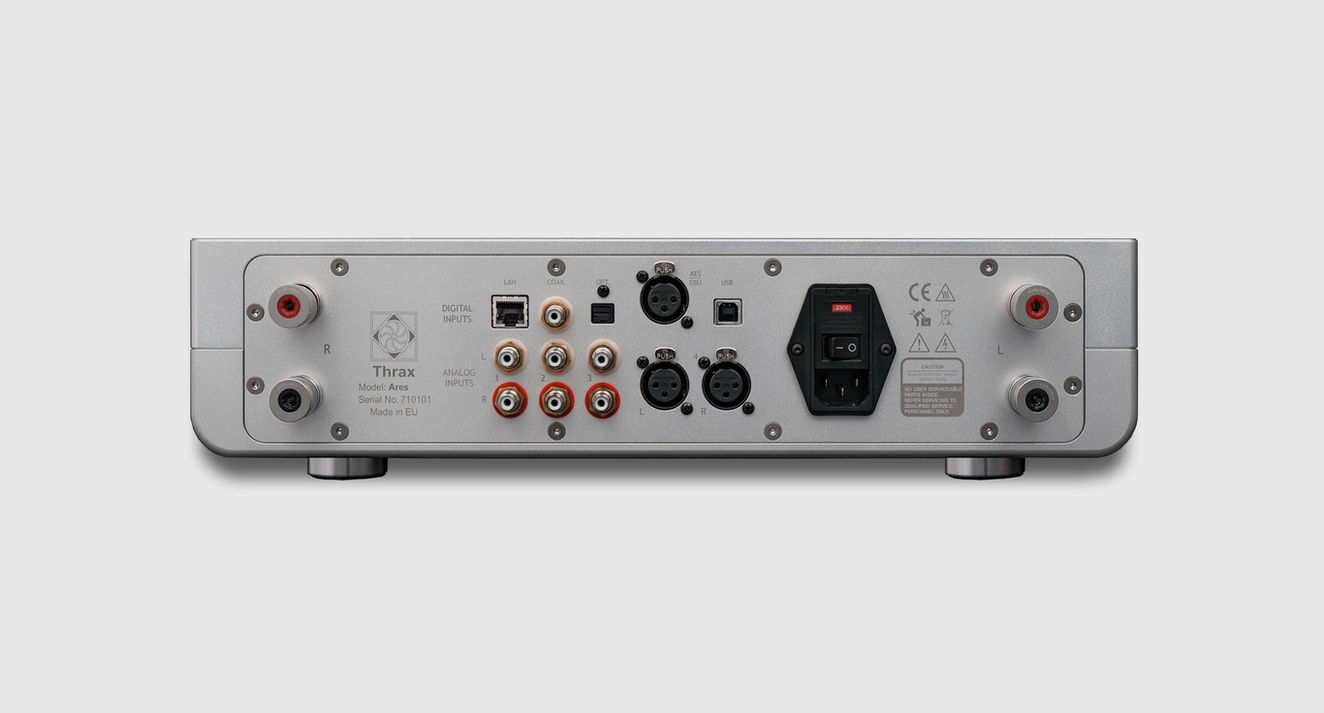

The Digital board accommodates all modern digital interfaces - AES, SPDIF, Toslink, USB, Ethernet and Bluetooth. It hosts a 32bit/768kHz/ DSD256 dac. The dac itself is discrete build around switched resistors. The streaming module supports multiple protocols, sample rates and signal resolutions.
A dedicated power supply and regulators make it yet another separate component in the same box. Ares is a way of getting rid of cables, multiple remotes and boxes scattered across the room, while its true modularity lets you keep it current for a long time to come. So when we say it is a modular audiophile system we mean it. Zero compromise with no cable clutter and extra space. Each module optimised for each other guaranteeing system synergy of the highest level.

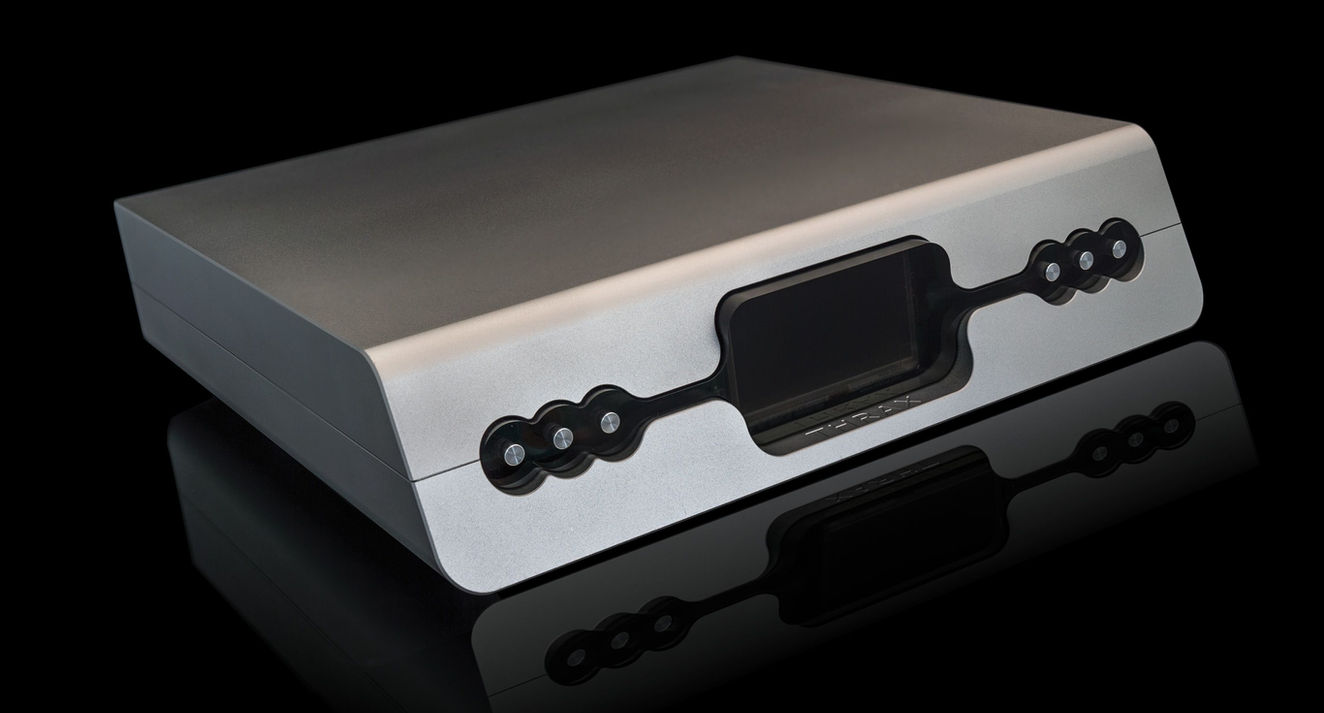

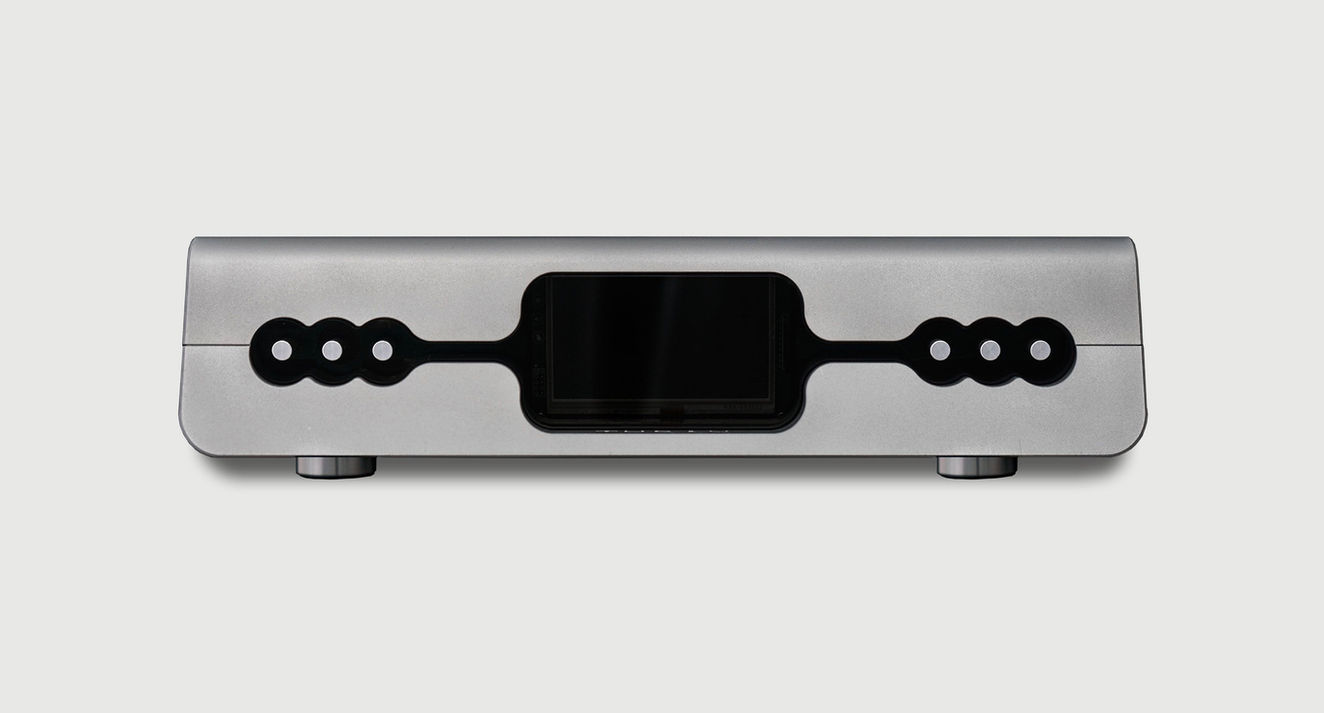

The chassis housing all this is carved like a sculpture from 45kg of aluminium alloy preventing any mechanical vibrations from disturbing the operation of the sensitive circuitry inside while screening it from electromagnetic interference. The whole chassis is a heatsink for the power amplifiers eliminating the need for holes and vents.
